Communication Cable & Accessories |
| |
|
| |
|
|

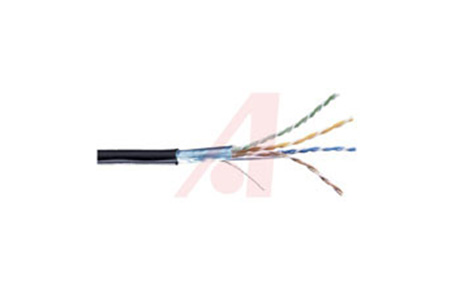

 Industrial Ethernet, Copper, Bonded Pairs, Foil Shielded Black |
| |
| Specifications: |
| |
 |
Heavy-Duty Sunlight And Oil-Resistant Jacket, Category 5e Datatuff® Twisted Pair Cable |
|
Heavy-Duty Sunlight And Oil-Resistant Jackets |
|
Complete Line Of Twisted Pair Solutions For The Industrial Ethernet |
|
Data Tuff® Twisted Pair Are Verified Category 5e Cables, Available In Shielded And Unshielded Designs With Both Bonded Pair |
| |
And Unbonded Pair Constructions |
|
Heavy-Duty, Sunlight And Oil-Resistant Industrial Grade Jackets Are Standard |
|
High And Low Temperatures, Gas Resistant |
| |
| Application |
: |
Industrial Ethernet, Ntsc/Pal Component Or Composite Video And For Inductrial Automation And Process Control. |
| Color, Jacket |
: |
Black |
| Diameter, Outer, Nominal |
: |
0.265 " |
| Material, Conductor |
: |
Bare Copper |
| Material, Insulation |
: |
Polyolefin |
| Material, Jacket |
: |
Polyvinylchloride |
| Number Of Conductors |
: |
4 PRS |
| Shielding |
: |
Foil Shield |
| Standards |
: |
UL NEC TYPE CMR, CMX OUTDOOR/CUL CMR FT4 |
| Stranding |
: |
Solid |
| Temperature, Rating |
: |
-40 TO +75 °C |
| Voltage, Rating |
: |
300 |
| Wire, AWG |
: |
24 |
| ROLL OF 305METER |
|
|
|
| |
|
| |
|
| |
|
|
Category 5e, Non-Plenum Rated, 4 Pair, 350mhz Rated, Bonded Pair |
| |
| Specifications: |
| |
| Application |
: |
For Gigabit Ethernet, 100basetx, 100basevg Anylan, 155atm, 622atm, Ntsc/Pal Component Or Composite Video, |
| |
: |
Aes/Ebu, Digital Video, Rs-422, Noisy Environments |
| Cable Type |
: |
Unshielded Twisted Pair |
| Color, Jacket |
: |
Light Blue |
| Diameter, Outer, Nominal |
: |
0.2 " |
| Material, Conductor |
: |
Bare Copper |
| Material, Insulation |
: |
Polyolefin |
| Material, Jacket |
: |
Polyvinylchloride |
| Number Of Conductors |
: |
4 PRS |
| Standards |
: |
UL NEC TYPE CM/CUL CEC TYPE CM, EU CE |
| Stranding |
: |
Solid |
| Temperature, Rating |
: |
-20 TO +80 °C |
| Wire, AWG |
: |
24 |
| ROLL OF 305METER |
|
|
|
| |
|
| |
|
| |
|
|
Category 5e Patch Cord; 24 Awg Solid; Bonded Pair; Cmr; Yellow |
| |
| Specifications: |
| |
| Application |
: |
For High Density Hubs, Telecommunications Outlet Connections, Muto Connections, Consolidation Point |
| |
|
Connections, Patch Panel Connections, Equipment Connections |
| Cable End 1, Connector Angle |
: |
Straight |
| Cable End 1, Connector Type |
: |
RJ45 PLUG |
| Cable End 2, Connector Angle |
: |
Straight |
| Cable End 2, Connector Type |
: |
RJ45 PLUG |
| Cable Type |
: |
UTP, CAT-5E |
| Color, Jacket |
: |
Yellow |
| Length, Cable |
: |
2 FT. |
| Material, Conductor |
: |
Copper |
| Material, Insulation |
: |
Polyethylene |
| Material, Jacket |
: |
Polyvinylchloride |
| Number Of Conductors |
: |
8 Conductors |
| Size, Conductor |
: |
24 AWG |
| Standards |
: |
UL |
| Stranding |
: |
Solid |
| Type |
: |
Network |
|
|
|
| |
|
| |
|
| |
|
|
Category 5e Patch Cord; 24 Awg Solid; Bonded Pair; Cmr; Yellow |
| |
| Specifications : |
| |
| Application |
: |
For High Density Hubs, Telecommunications Outlet Connections, Muto Connections, Consolidation Point |
| |
|
Connections, Patch Panel Connections, Equipment Connections |
| Cable End 1, Connector Angle |
: |
Straight |
| Cable End 1, Connector Type |
: |
RJ45 PLUG |
| Cable End 2, Connector Angle |
: |
Straight |
| Cable End 2, Connector Type |
: |
RJ45 PLUG |
| Cable Type |
: |
UTP, CAT-5E |
| Color, Jacket |
: |
Yellow |
| Length, Cable |
: |
4 FT. |
| Material, Conductor |
: |
Copper |
| Material, Insulation |
: |
Polyethylene |
| Material, Jacket |
: |
Polyvinylchloride |
| Number Of Conductors |
: |
8 Conductors |
| Size, Conductor |
: |
24 AWG |
| Standards |
: |
UL |
| Stranding |
: |
Solid |
| Type |
: |
Network |
|
|
|
| |
|
| |
|
|
|
